Blue Neuron Blade Cell Battery Design

A revolution in marine battery safety

The Blue Neuron battery design is the first marine application of blade batteries. Blade batteries have unmatched thermal safety and resilience. They are the only Lithium-based battery that does not combust or emit smoke in a nail penetration test - the toughest battery safest test available!

NMC lithium ion battery catching fire after nail penetration test
LPO battery outgassing after nail penetration test
LPO Blade battery showing no smoke and no fire after nail penetration test

Check out the full video by BYD!

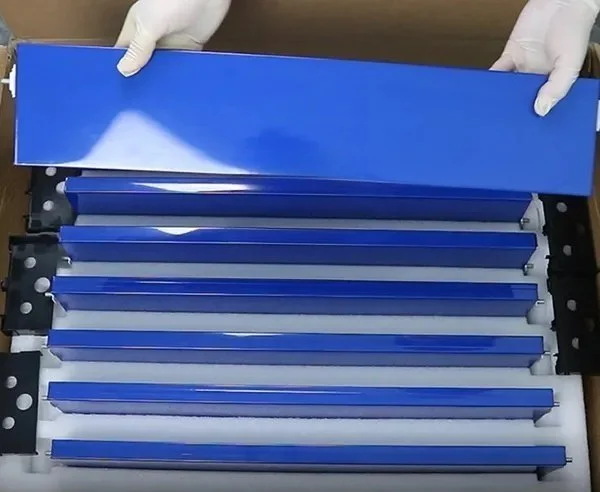

  • Blue Neuron marine batteries are the first to incorporate blade battery cells for increased safety and reduced weight compared to standard LiFePo4 cells.

    Check out this video from BYD and judge for yourself.

  • We offer several pre-configured battery systems to get you started:

    - a 700V battery with 6 modules and control box to support electric propulsion systems.

    - a matching 24V single module battery to power DC boat systems.

    - (coming soon) a 48V/96V design for electric tender

    We can also provide technical support to adapt these designs to your unique needs.

  • The Blue Neuron battery design employs a best-in class Battery Management System. The BMS is your first line of defence for battery safety and battery performance.

    - voltage monitoring of individual cells

    - cell balancing for maximum battery life and simpler battery assembly

    - CAN comms for direct communications with your battery charger

    - comprehensive thermal monitoring

  • The Blue Neuron Battery design includes up to 88 temperature sensors (number depends on battery size) to measure temperatures across the entire battery bank and cooling system.

    The design also includes a water cooling system for extra peace of mind during high current charging and discharging. This also provides for battery warming, if needed, to ensure the cells are kept within their ideal temperature range to maximise charging/discharging efficiency and extending battery life.

    For extra peace of mind and to keep the cells at their ideal temperature to maximise charging efficiency and battery life.

    Warm in winter and cool when discharging.

  • Direct communications between the BMS and your battery charger and electric engine control is a critical safety feature included in the Blue Neuron design.

    Our design also includes custom CAN messages and an add-on CAN-NMEA comms bridge to simplify integration to vessel management systems such as our Blue Neuron Platform.

  • All our Blue Neuron products are designed with safety as the primary consideration. Our battery design provides multi-layered safety mechanisms for the ultimate peace of mind:

    - direct and robust communications with the charger to restrict or disable charging and discharging when parameters are outside safety limits.

    - water cooling system to dissipate excess heat.

    - fire suppression system in the event of a battery fire

    - water, fire and explosion proof enclosure for ultimate safety
